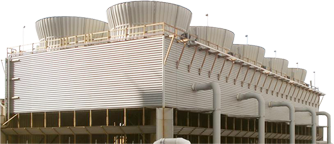

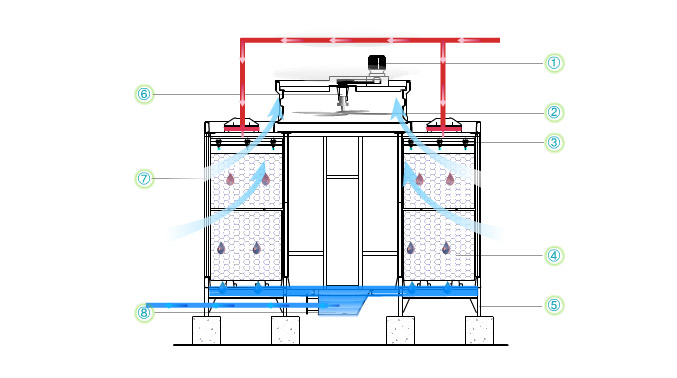

NO	PART NAME	NO	PART NAME
1.	MOTOR(모터)	2.	FAN STACK(팬)
3.	DISTRIBUTOR BOX(노즐)	4.	FILLER(충진물)
5.	LEG(다리)	6.	SPPED REDUCER(감속기)
7.	FRAME(FRP구조물)	8.	COLD WATER BASIN(하부수조)

특징

사양

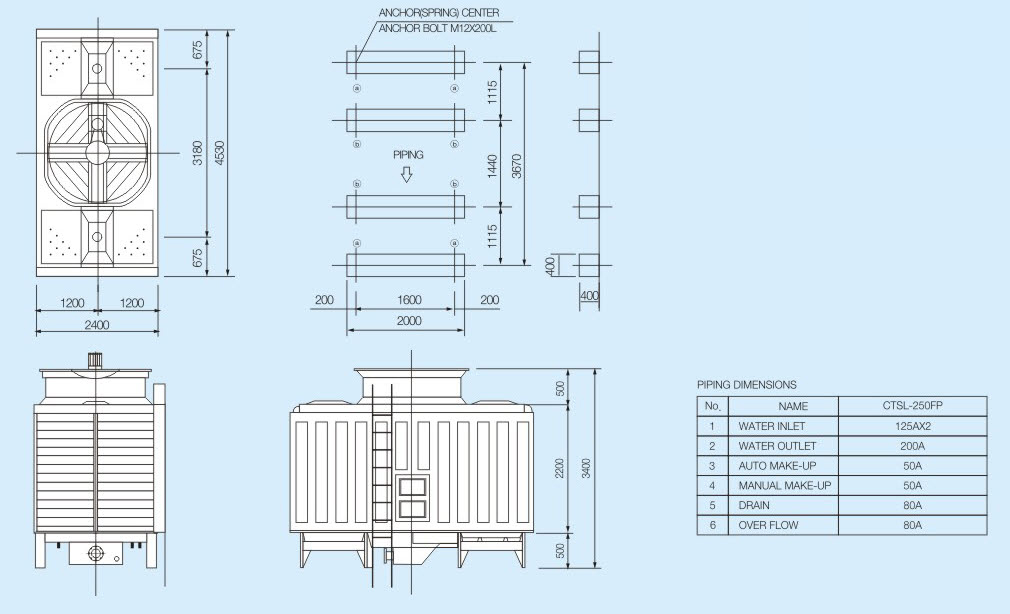

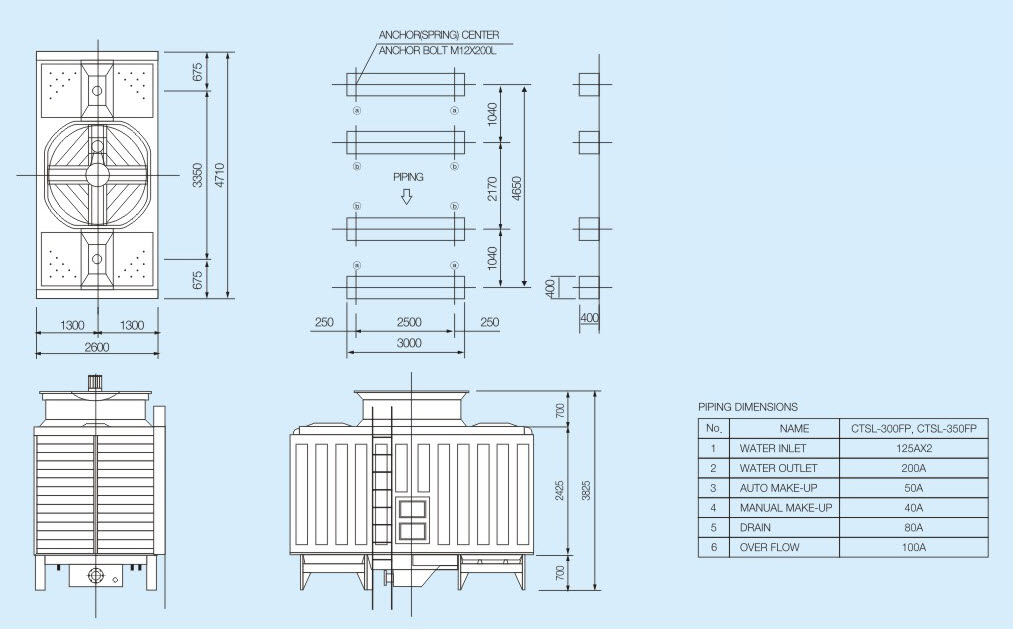

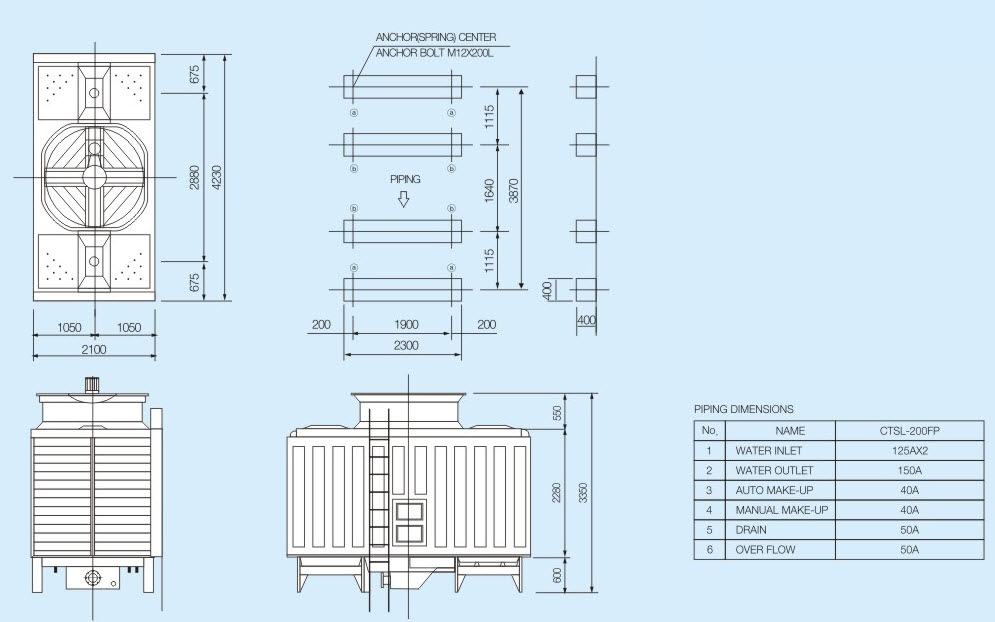

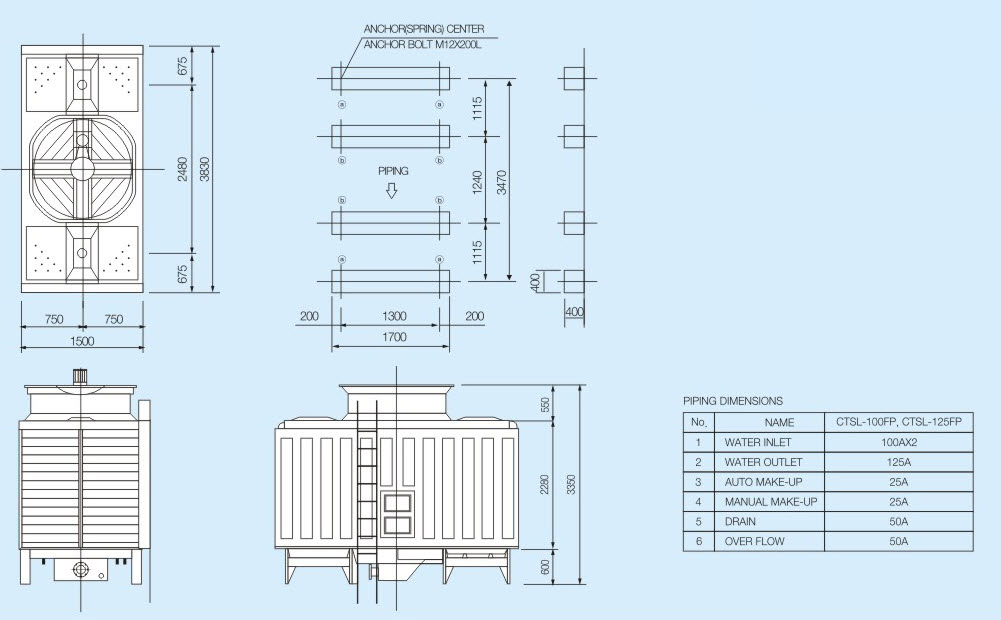

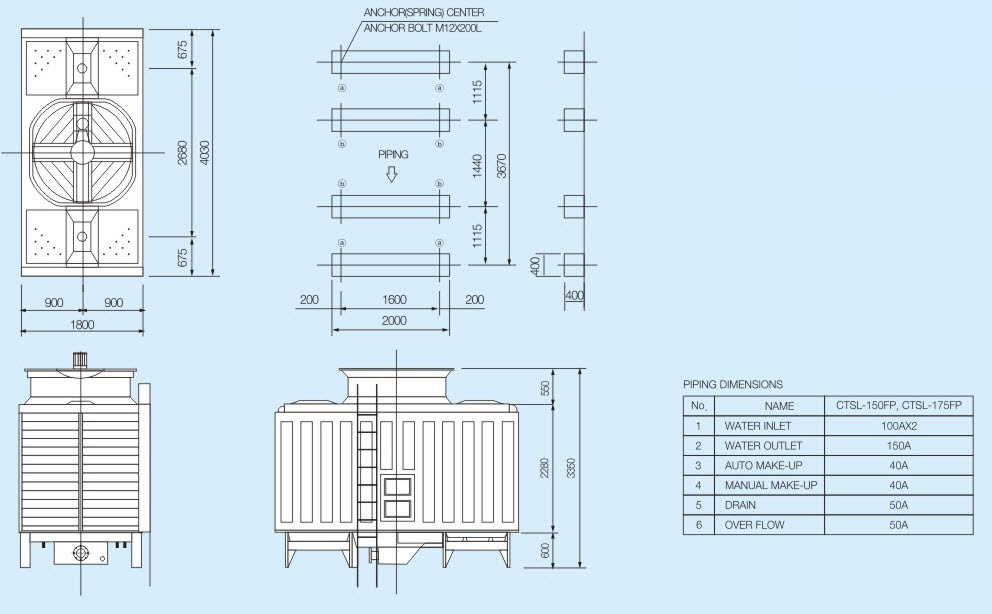

Item Model		KT-100	KT-125	KT-150	KT-175	KT-200	KT-250	KT-300
Cooling capacity	RT	100	125	150	175	200	250	300
Heat load	kcal/h	390000	487500	585,000	682,500	780,000	975,000	1,170,000
Cirulating water	㎥/h			117	136.5	156	195	234
Hot water temperature	℃			37
Cold water temperature	℃			32
Entering wet bulb temperature	℃			27
Length(L)	mm	2,050	2,200	2,350	2,350	2,350	2,350	2,370
Width(W)	mm	2,050	2,200	2,550	2,550	3,335	1,450	3,580
Overall height(H)	mm	3,244	3,244	3,185	3,185	3,535	3,185	3,820
Casing/Partition		F.R.P
Frame work/Basin Frame		SS400 +H.D.G
Filing		P.V.C
Distribution panel		P.V.C
Cold water basin		F.R.P
Louver / Eliminator		P.V.C
Fan		BLADE : FRP, HUB: AL ALLOY
Fan stack		F.R.P
Type		A XLAL-FLOW
Diameter	￠mm			1,300	1,300	1,600	2,000	1,600
Number of blade	ea			4			6	4
Drive system				3중 결합 V-BELT DRIVE
Air volume	㎥/min			986	1150	13,141,314	1,489	1,643	1,972
Type				TEFC
Power source				3PH/60HZ/220/380/440V
Pated output	HP			5	7.5	7.5	7.5	10	10
Quantity				1
				OPEN GRAVITY TYPE
Hot waterinlet(hole)				100A * 12					150A *1
Cold water outlet pipe				150A * 1			200A * 1
Drain pipe				50A * 1			50A * 1
Overflow pipe				50A * 1
Automatic make-up water inlet pipe				32A * 1			40A * 1
Manual make-up water inlet pipe				32A * 1			40A * 1
kg				1,550		1,570	1,820	1,850	2,090
kg				3,580		3,620	4,470	4,520	4,670

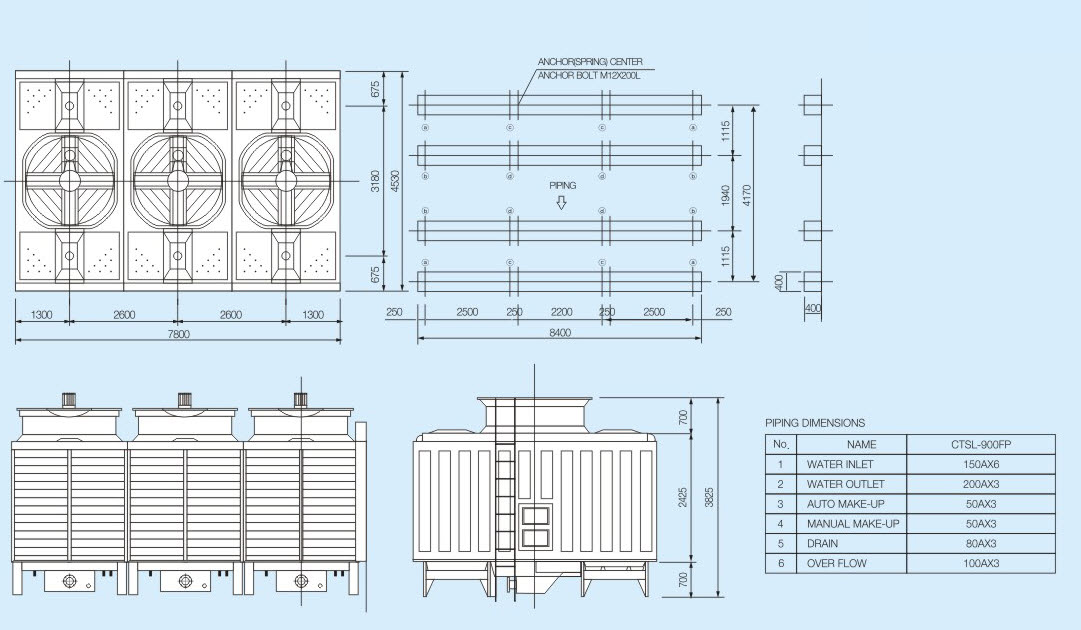

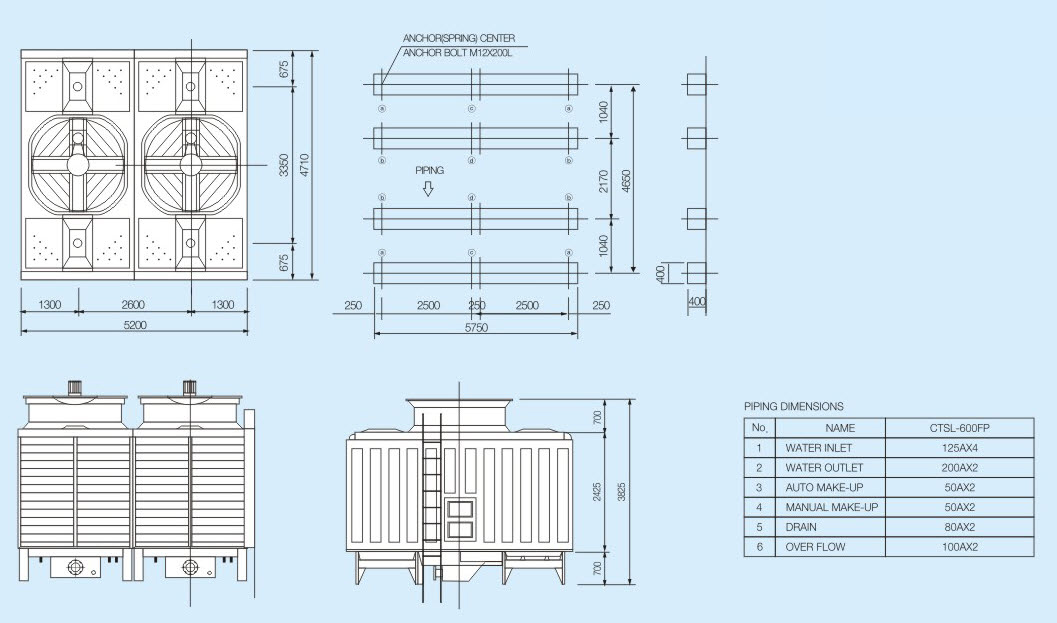

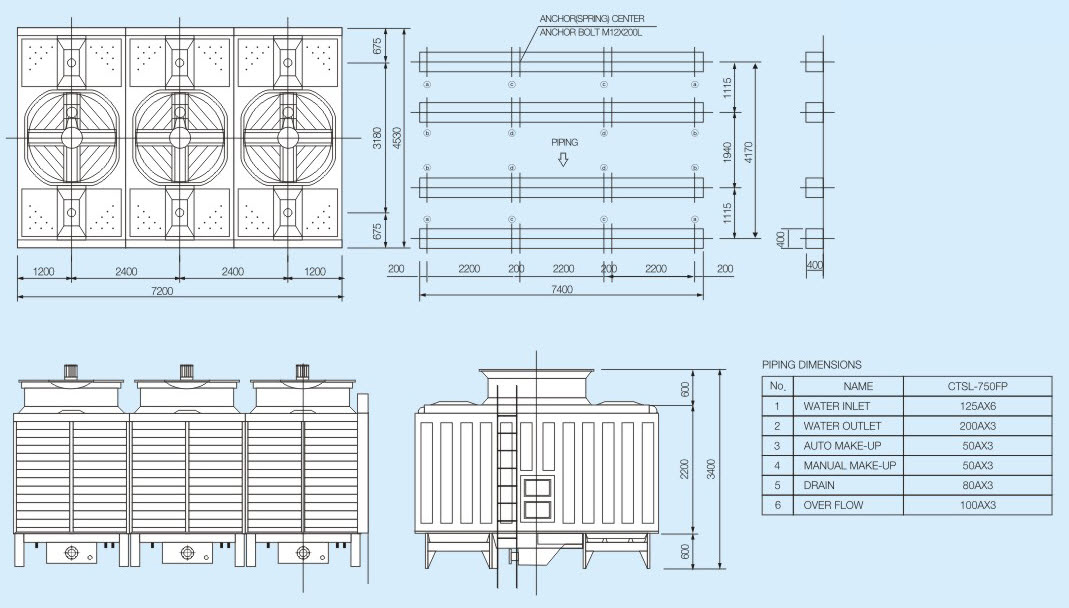

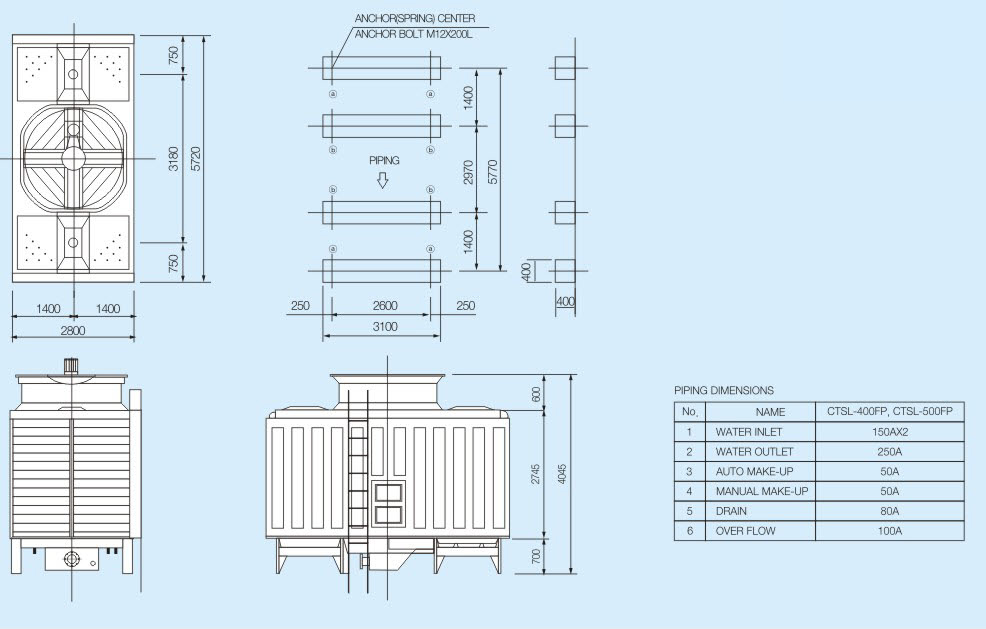

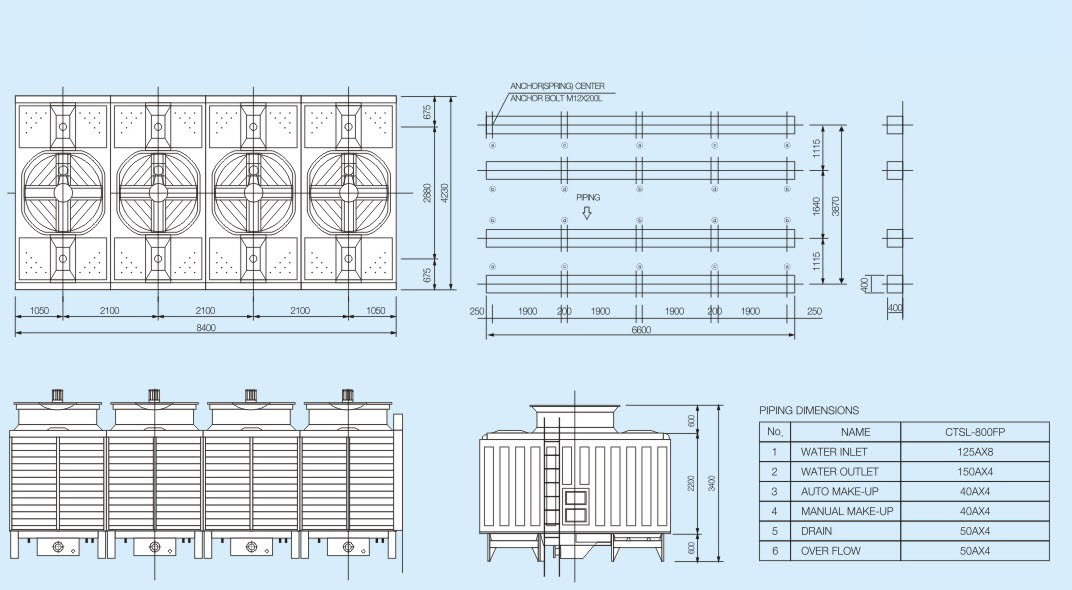

Item Model		KT-350	KT-400	KT-450	KT-500	KT-600	KT-675	KT-750	KT-800	KT-900	KT-1000
Cooling capacity	RT	350	400	450	500	600	675	750	800	900	1,000
Heat load	kcal/h	1,365,000	1,560,000	1,755,000	1,950,000	2,340,000	2,632,200	2,925,000	3,120,000	3,510,000	3,900,000
Cirulating water	㎥/h	273	312	351	390	468	526.5	585	624	702	780
Hot water temperature	℃	37
Cold water temperature	℃	32
Entering wet bulb temperature	℃	27
Length(L)	mm	2,560	4,712	4,632			6,948				9,264
Width(W)	mm	4,700	4,590	4,790
Overall height(H)	mm	4,235	2,715			3,080	2,715		3,080		2,715
Casing/ Partition		F.R.P
Frame work/ Basin Frame		SS400 + H.D.G
Filing		P.V.C
Distribution panel		F.R.P
Cold water basin		F.R.P
Louver / Eliminator		P.V.C
Fan		BLADE : FRP, HUB: AL ALLOY
Fan stack		F.R.P
Type		A XLAL-FLOW
Diameter	￠mm	1,600	1,800	2,000
Number of blade	ea	4			6		4	6
Drive system		3중 결합 V-BELT DRIVE
Air volume	㎥/min	2,300	2,628	2,958	3,286	3,944	4,437	4,929	5,259	5,916	6,572
Type		TEFC
Power source		3PH/60HZ/220/380/440V
Pated output	HP	7.5			10		7.5	10	7.5	10	10
Quantity		2					3				4
		OPEN GRAVITY TYPE
Hot waterinlet(hole)		125A * 4 125A * 4				150A *4	125A *6			150A*6	125A * 8
Cold water outlet pipe		150A * 2		200A * 2			200A*3				200A*4
Drain pipe		50A * 2					50A *3				50A *4
Overflow pipe		50A *2	65A * 2				65A * 3				65A *4
Automatic make-up water inlet pipe		32A * 2		40A * 2			40A *3				40A*4
Manual make-up water inlet pipe		32A * 2		40A * 2			40A *3				40A*4
kg		3,140	3,380	3,640	3,700	4,180	5,460	5,550	6,210	6,270	7,400
kg		7,240	7,900	8,490	9,040	13,410	13,560	13,710	13,710	14,010	18,080
