직교류형

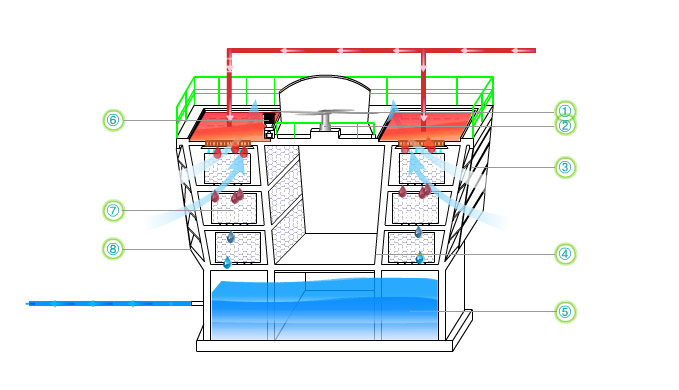

| NO | PART NAME | NO | PART NAME |
|---|---|---|---|
| 1. | FAN STACK(팬) | 2. | SPPED REDUCER(감속기) |
| 3. | LOUVER(흡입망) | 4. | ELIMINATOR(비산방지) |
| 5. | COLD WATER BASIN(하부수조) | 6. | MOTOR(모터) |
| 7. | FILLER(충진물) | 8. | CASING & FRAME(FRP구조물) |
| Mem | KT-300 | KT-350 | KT-400 | KT-500 | KT-600 | KT-700 | KT-800 | KT-1000 | |
|---|---|---|---|---|---|---|---|---|---|
| Cooling capaciaty | RT | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 1,000 |
| Heat load | kal/h | 1,170,000 | 1,365,000 | 1,560,000 | 1,950,000 | 2,340,000 | 2,730,000 | 3,120,000 | 3,900,000 |
| Cirulatintg water flow rate | ㎥/h | 234 | 273 | 312 | 390 | 468 | 546 | 624 | 780 |
| Hot water temperature | ℃ | 37 | |||||||
| Cold water temperature | ℃ | 32 | |||||||
| Entering wet bulb temperature | ℃ | 27 | |||||||
| Casing/Partition | FRP, SUS, WOOD,CONC | ||||||||
| Frame work /basin frame | SS400 +H.D.G | ||||||||
| Filling | PVC,사출P.P WOOD | ||||||||
| Distribution panel | FRP | ||||||||
| Cold water basin | FRP | ||||||||
| Louver / Eliminator | PVC | ||||||||
| Fan | BLADE : FRP,HUB ;AL ALLOY | ||||||||
| Fan stack | FRP | ||||||||
| Type | A XLAL-FLOW | ||||||||
| Diameter | ￠mm | 2,000 | 2,400 | 2,400 | 2,400 | 2,000*2 | 2,400*2 | 2,400*2 | 2,000*4 |
| Drive system | 3중 결합 V-BELT DRIVE | ||||||||
| Air volume | ㎥/min | 1,972 | 2,300 | 2,628 | 3,286 | 3,944 | 4,600 | 5,256 | 6,572 |
| Type | TEFC | ||||||||
| Power source | 3PH/60HZ/220/380/440V | ||||||||
| Pated output | HP | 15 | 15 | 20 | 20 | 15 | 15 | 20 | 10 |
| Quantity | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 4 | |
| Distribution system | OPEN GRAVITY TYPE | ||||||||
