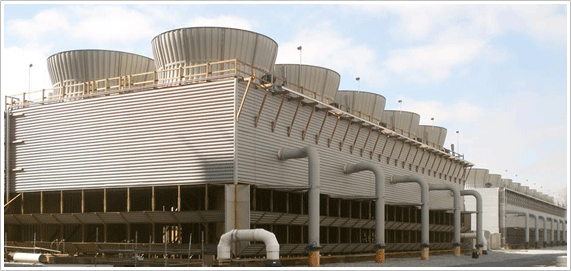

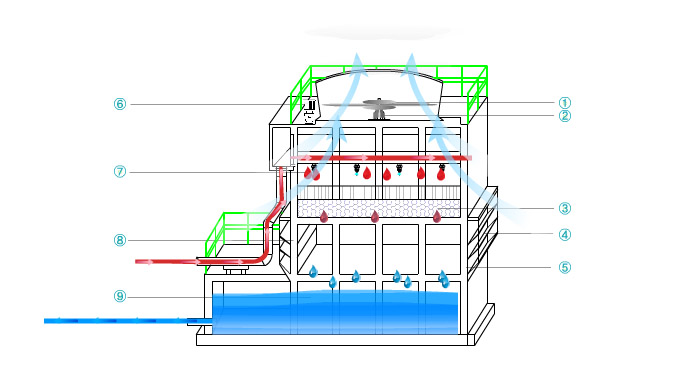

NO	PART NAME	NO	PART NAME
1.	FAN STACK(팬)	2.	SPPED REDUCER(감속기)
3.	FILLER(충진물)	4.	LOUVER(흡입망)
5.	FRAME(FRP구조물)	6.	MOTOR(모터)
7.	DISTRIBUTOR BOX(노즐)	8.	CASING
9.	COLD WATER BASIN(하부수조)

특징

사양

Mem		KT-150	KT-175	KT-200	KT-225	KT-250	KT-300
Cooling capaciaty	RT	150	175	200	225	250	300
Heat load	kal/h	585,000	682,500	780,000	877,500	975,000	1,170,000
Cirulatintg water flow rate	㎥/h	117	136.5	156	175.5	195	234
Hot water temperature	℃	37
Cold water temperature	℃	32
Entering wet bulb temperature	℃	27
Length(L)	㎜	2,370	2,370	2,370	2,370	2,370	2,370
Width(W)	㎜	2,370	2,370	3,000	3,580	3,580	3,580
Overall height(H)	㎜	3,270	3,270	3,270	3,370	3,370	3,820
Casing/Partition		F.R.P
Frame work /basin frame		SS400 +H.D.G
Filling		P.V.C
Distribution panel		P.V.C
Cold water basin		F.R.P
Louver / Eliminator		P.V.C
Fan		BLADE : FRP,HUB ;AL ALLOY
Fan stack		F.R.P
Type		A XLAL-FLOW
Diameter	￠mm	1,600		1,1800	2,000
Drive system		3중 결합 V-BELT DRIVE
Air volume	㎥/min	966	1,162	1,315	1,495	1,643	1,972
Type		TEFC
Power source		3PH/60HZ/220/380/440V
Pated output	HP	5	7.5			10
Quantity		1
Distribution system		LOW PRESSURE TYPE
Hot waterinlet(hole)		150A *1			200A *1
Cold water outlet pipe		150A *1			200A *1
Drain pipe		50A * 1
Overflow pipe		50A * 1		65A * 1
Automatic make-up water inlet pipe		32A *1			40A *1
Manual make-up water inlet pipe		32A *1			40A *1
Dead Weight	kg	1,010	1,050	1,140	1,250	1,400	1,500
Operating Weight	kg	2,500	2,650	3,050	3,420	3,550	3,800

Mem		KT-350	KT-400	KT-500	KT-600	KT-700	KT-800	KT-1000
Cooling capaciaty	RT	350	400	500	600	700	800	1,000
Heat load	kal/h	1,365,000	1,560,000	1,950,000	2,340,000	2,730,000	3,120,000	3,900,000
Cirulatintg water flow rate	㎥/h	273	312	390	468	546	624	780
780Hot water temperature	℃	37
Cold water temperature	℃	32
Entering wet bulb temperature	℃	27
Length(L)	㎜	3,000	3,000	4,740	4,740	6,000	6,000	9,000
Width(W)	㎜	3,580	3,580	3,580	3,580	3,580	3,580	3,580
Overall height(H)	㎜	3,850	3,870	3,870	3,820	3,870	3,870	3,850
Casing/Partition		F.R.P
Frame work /basin frame		SS400 +H.D.G
Filling		P.V.C
Distribution panel		P.V.C
Cold water basin		F.R.P
Louver / Eliminator		P.V.C
Fan		BLADE : FRP,HUB ;AL ALLOY
Fan stack		F.R.P
Type		A XLAL-FLOW
Diameter	￠mm	2,400		2,000		2,400
Drive system		3중 결합 V-BELT DRIVE
Air volume	㎥/min	2,300	2,628	3,285	3,944	4,600	5,256	6,572
Type		TEFC
Power source		3PH/60HZ/220/380/440V
Pated output	HP	15	20	10		15	20	15
Quantity		1		2				3
Distribution system		LOW PRESSURE TYPE
Hot waterinlet(hole)		200A *1	250A *1	200A * 2			250A * 2	200A * 3
Cold water outlet pipe		200A *1	250A *1	200A * 2			250A * 2	200A * 3
Drain pipe		50A * 1		50A * 2	50A * 2	50A * 2	50A * 2	50A * 3
Overflow pipe		50A * 1		65A * 2		80A * 2	80A * 2	80A * 3
Automatic make-up water inlet pipe		40A * 1		40A * 2	40A * 2	40A * 2	40A * 2	40A * 3
Manual make-up water inlet pipe		40A * 1		40A * 2	40A * 2	40A * 2	40A * 2	40A * 3
Dead Weight	kg	1,950	2,050	2,800	3,200	3,900	4,100	5,850
Operating Weight	kg	4,750	4,950	7,100	7,600	9,500	9,900	14,250
